Karcher Pressure Washer, HD 9/23 G

SKU: FPK923

With the HD 9/23 G petrol-powered cold water pressure washer with Honda petrol engine, you can work independently and conveniently while staying mobile – even under adverse external conditions.

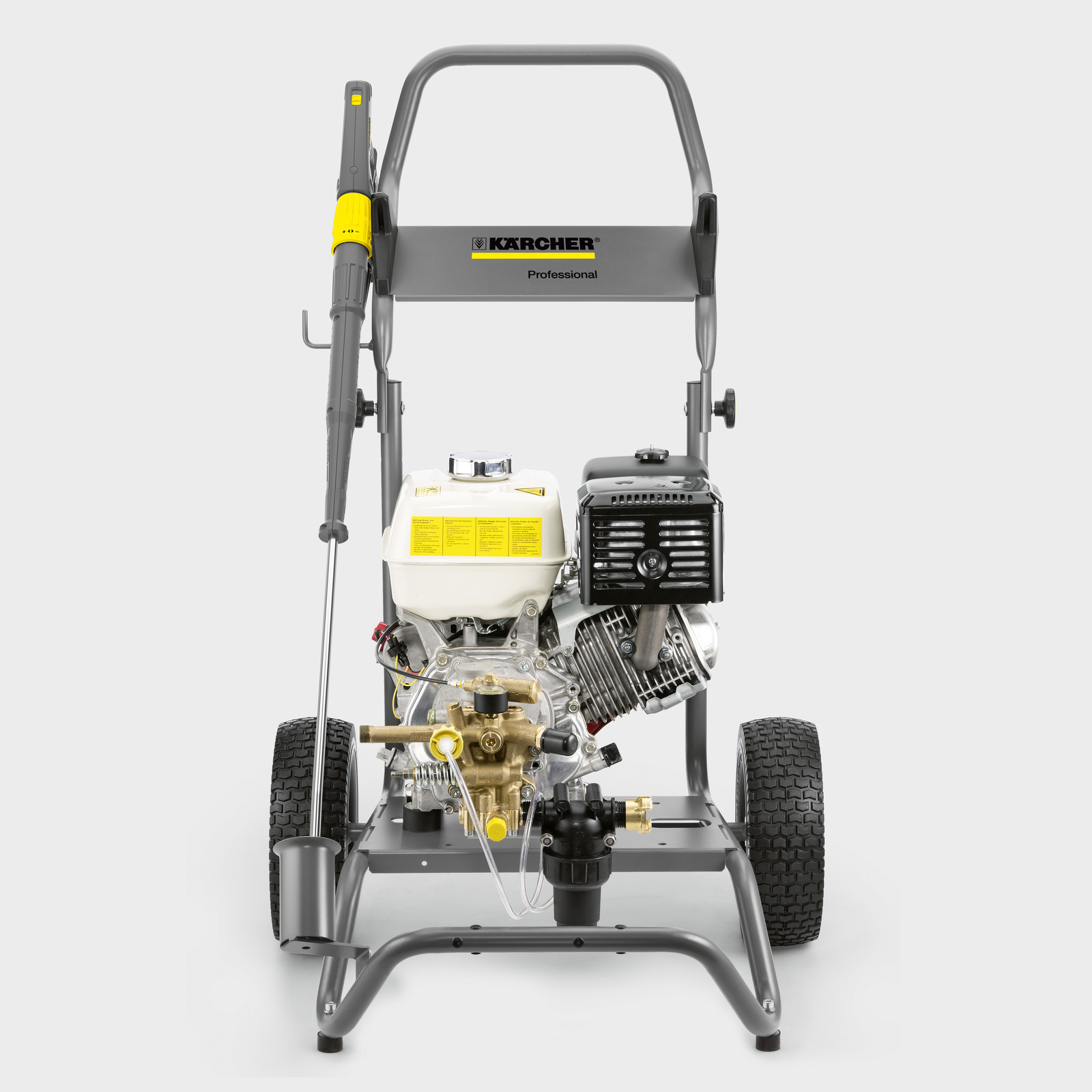

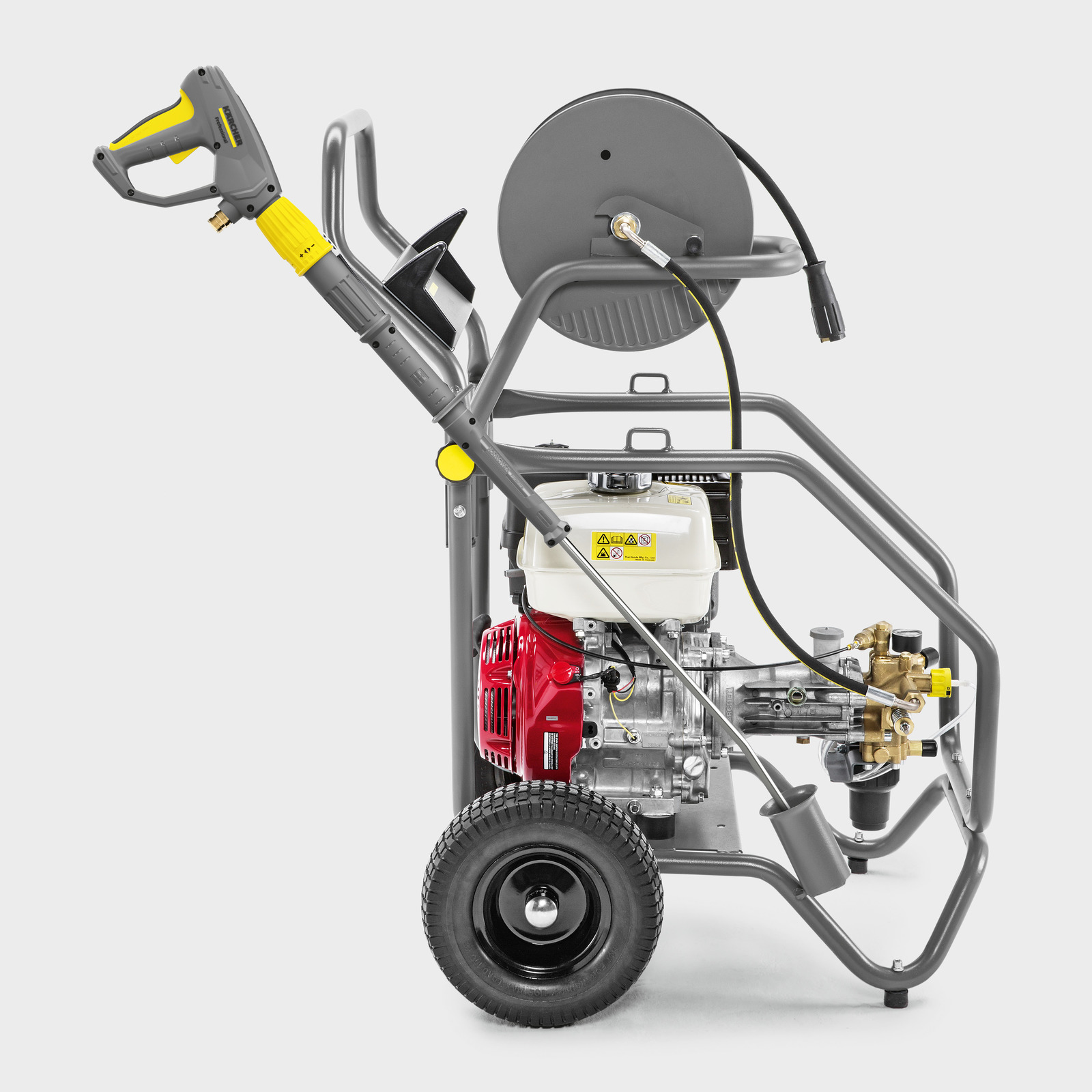

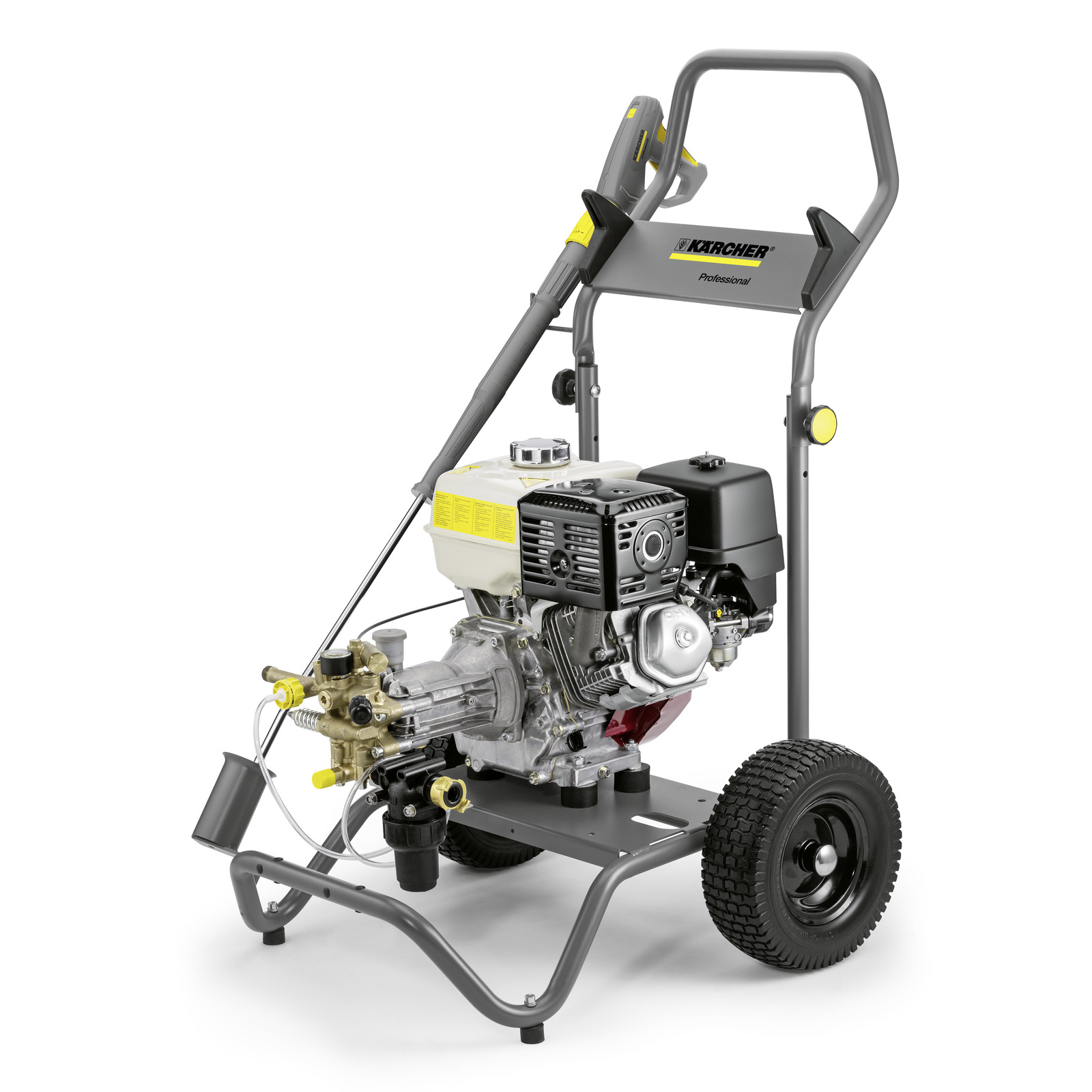

Fitted with a Honda petrol engine, the HD 9/23 G cold water pressure washer works completely independently of the power connection. Developed with the best cleaning results in mind – thanks to a water pressure of 230 bar and protected by a very stable frame, the machine serves you well even under extreme conditions.The ergonomically designed frame offers maximum mobility, even when the ground is uneven. Puncture-proof wheels and various storage options for accessories bear testimony to our goal to ensure you can work comfortably in all conditions. The EASY!Force high-pressure gun, makes use of the recoil force of the high-pressure jet to reduce the holding force for the operator to zero. The EASY!Lock quick-release fasteners, make set-up and dismantling five times faster than with conventional screw connections. The powerful pump allows you to extract water from lakes or ponds in an emergency. It is protected by a large water filter and a thermostat valve which prevents it from overheating in recirculation mode. Additionally available, within this range, is a cage frame with eyelets to facilitate loading onto a crane, as well as an attachment kit for a hose reel.

Features & Benefits

• Maximum independence - Fitted with a reliable Honda or Yanmar motor for use without an external power supply. Can suck up water – e.g. from lakes or ponds – and use it for cleaning.
• Optimum ease of use - The ergonomic frame concept makes transport on uneven ground easier. Storage options for all accessory parts directly on the machine. Puncture-proof wheels guarantee permanently high mobility.
• Highly Versatile - Optional cage frame with eyelets for crane loading and reliable protection of the machines. Hose reel attachment kit for shorter set-up available as an optional extra. Portable version with robust pipe frame specially designed for painters and plasterers (HD 728 B).

Application Areas

• Construction industry (facade cleaning, cleaning construction vehicles and equipment)
• Agriculture (cleaning vehicles and equipment or for use in forestry)
• Industry (cleaning of equipment)
• Service providers (cleaning outdoor areas e.g. squares and car parks)

Equipment

• Trigger gun: EASY!Force Advanced
• High-pressure hose length: 15 m
• High-pressure hose type: Premium quality
• High-pressure hose specification: ID 8, 315 bar
• Power nozzle
• Servo Control
• Infinitely variable pressure and water flow control on the unit

Technical data

• Flow Rate (l/h) - 400 - 930
• Operating pressure (bar/MPa) - 40 - up to 230 / 4 - up to 23
• Max. Pressure (bar/MPa) - 270 / 27
• Water feed - 1"
• Drive type - Petrol
• Motor manufacturer - Honda
• Motor type - GX 390
• Number of simultaneous users - 1
• Mobility - Cart
• Colour - anthracite
• Weight (with accessories) (kg) - 75.5
• Weight incl. packaging (kg) - 82.8
• Dimensions (L × W × H) (mm) - 866 x 722 x 1146
