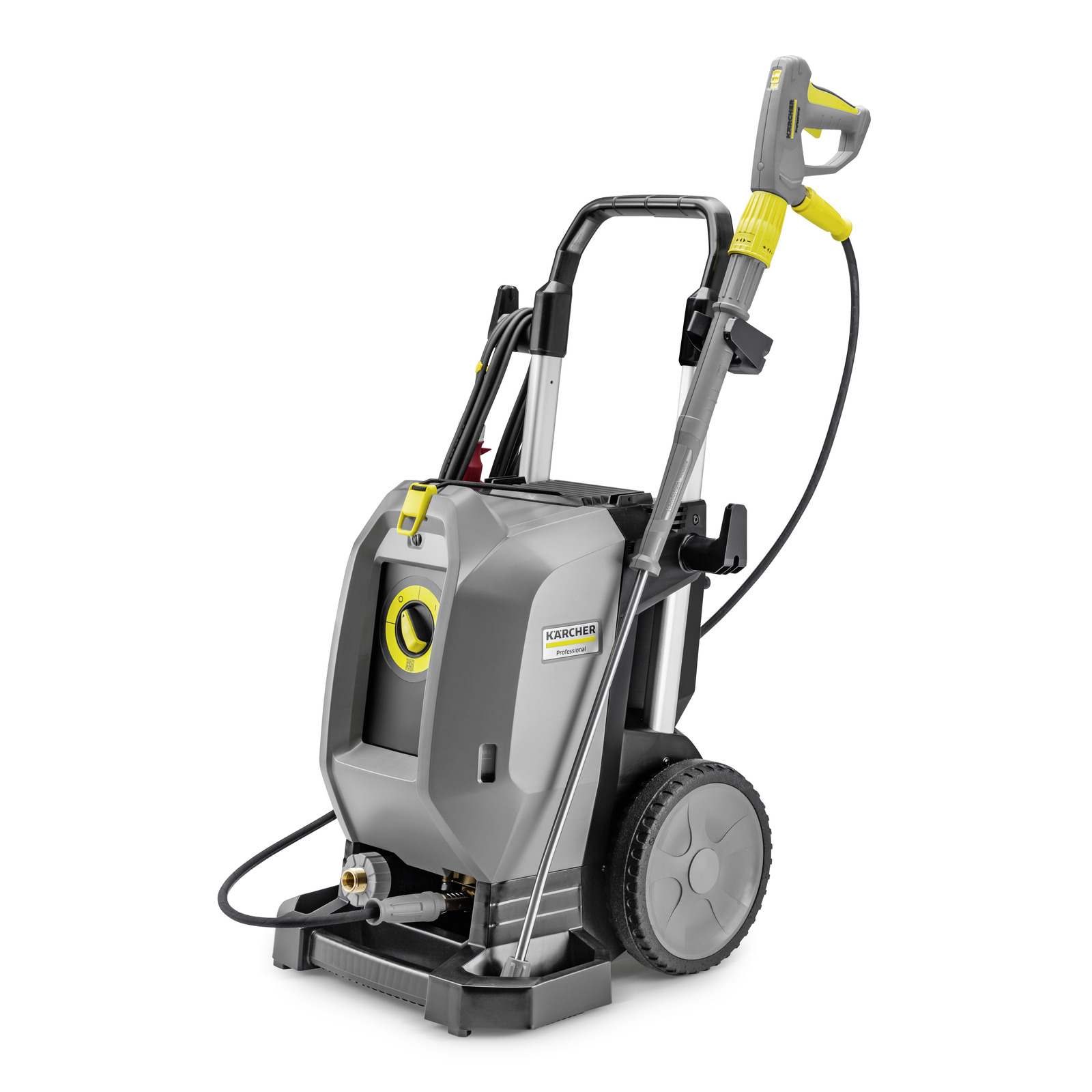

Karcher Pressure Washer, HD 10/21-4 S Plus

eda29f6c-15e8-43cd-8ab2-601dcb45c1a2.pdf
dc205ab9-25da-4ba2-8980-cbad708dd1c5.pdf

SKU: FPK1021-P

The HD 10/21-4 S Plus cold water high-pressure cleaner delivers high performance and premium quality. Ergonomic work thanks to Vibrasoft rotary nozzle and EASY!Force Advanced trigger gun.

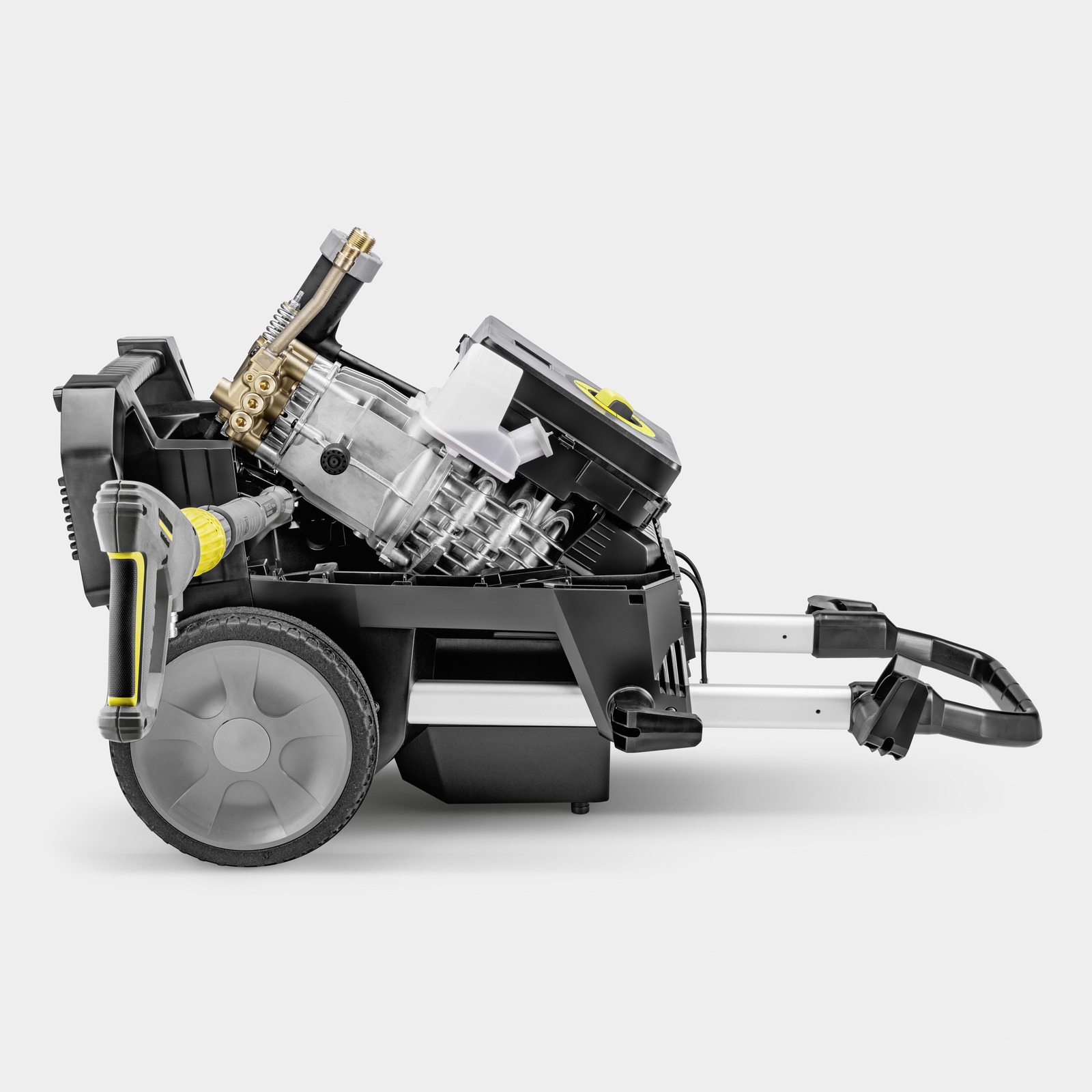

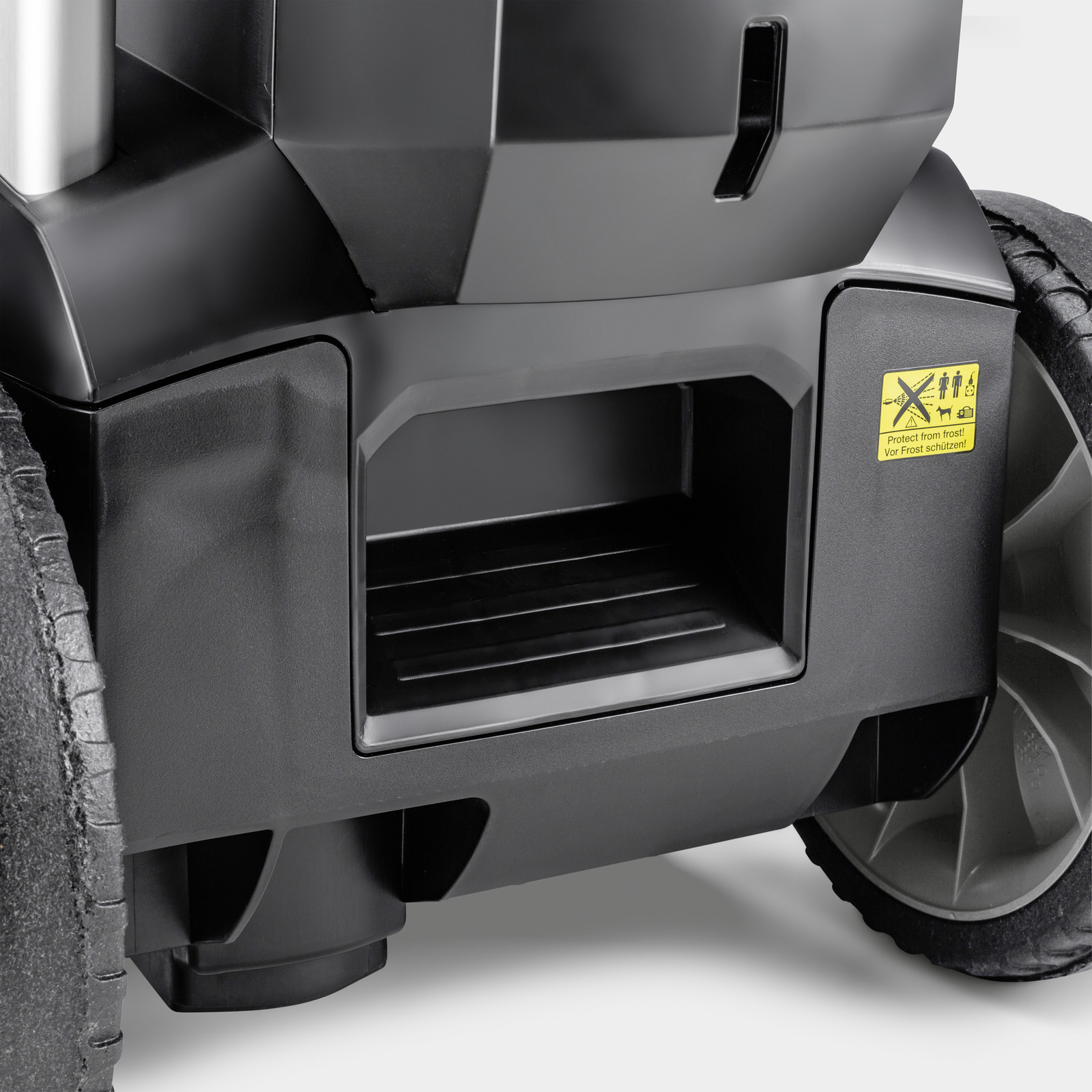

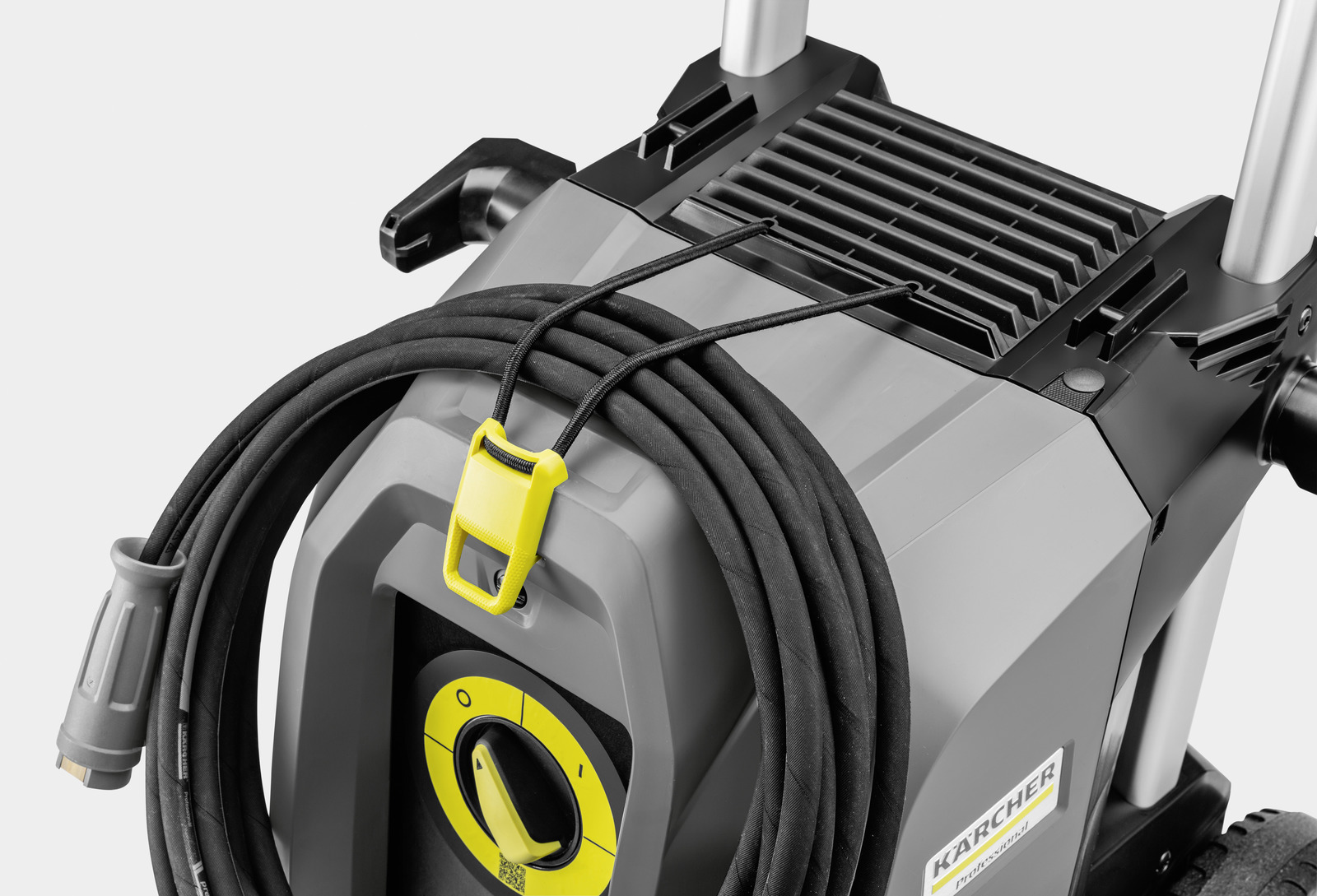

The HD 10/21-4 S Plus cold water high-pressure cleaner is the ideal machine for ergonomic and fatigue-free work. The Karcher EASY!Force Advanced trigger gun makes it comfortable to use without any holding force. The Servo Control controller regulates the pressure and water volume. The Vibrasoft rotary nozzle reduces vibrations on the spray lance by up to 30%. Carefully selected materials and premium quality are the hallmarks of the HD 10/21-4 S Plus. A hard-wearing wobble pump, stainless steel pistons and brass cylinder head work in partnership with a 4-pole low-speed motor with air-water cooling system. Integrated frame carriers made from aluminium form a lightweight yet robust chassis, making crane loading an option. For maximum portability and compact proportions, the motor and pump unit is mounted vertically in an upright arrangement. The machine also features accessory storage in the form of a stowage compartment and adjustable hooks.

Features & Benefits

• Compact upright design concept based on vertical arrangement of motor and pump unit - Small footprint and space-saving proportions. Easy to manoeuvre and transport. Maximum stability ensures a stable footing for the machine.

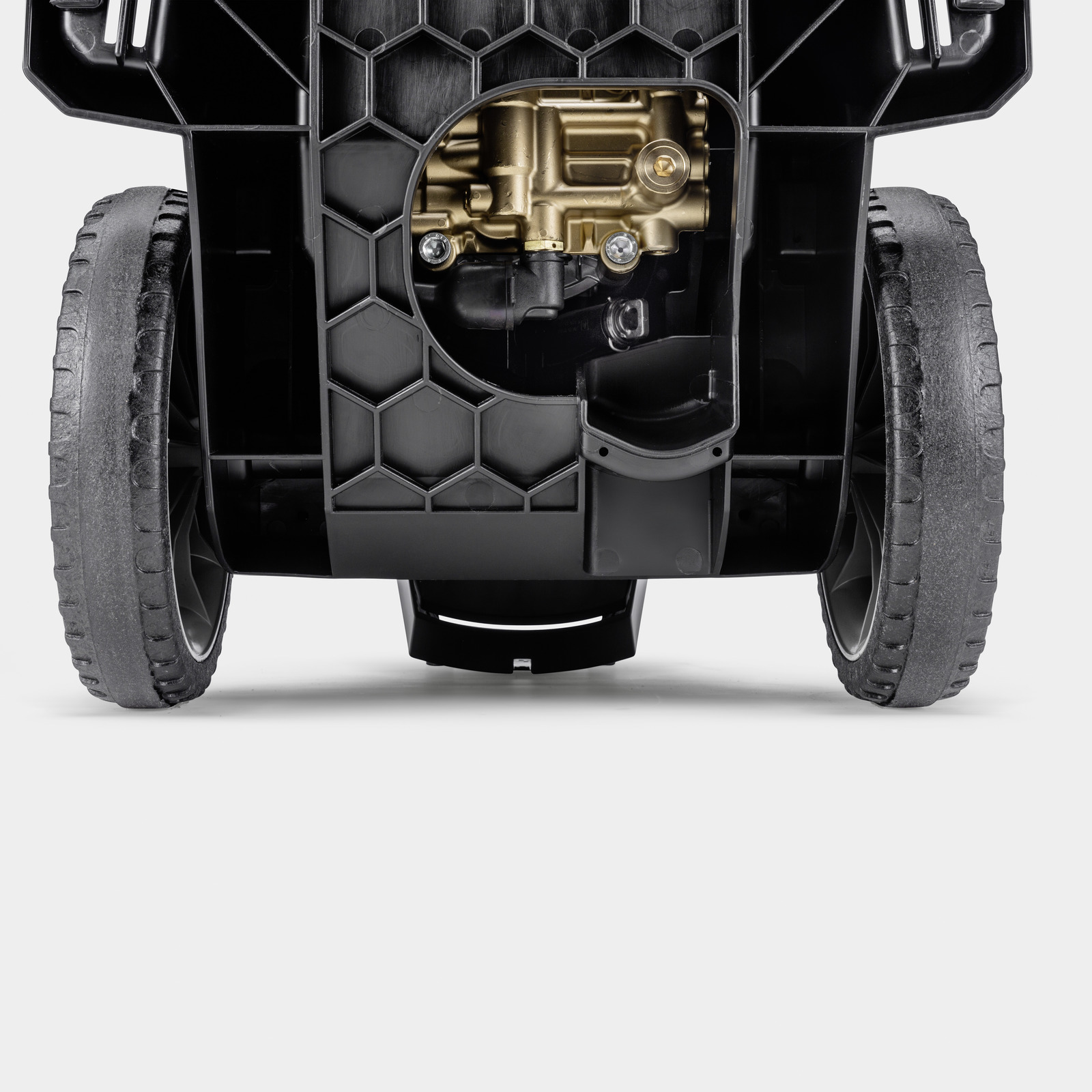

• 4-pole low-speed motor with air-water cooling system, robust pump with stainless steel pistons and brass cylinder head - Long service life and low maintenance costs. High performance and high efficiency. With suction feature and up to 60 °C water temperature.

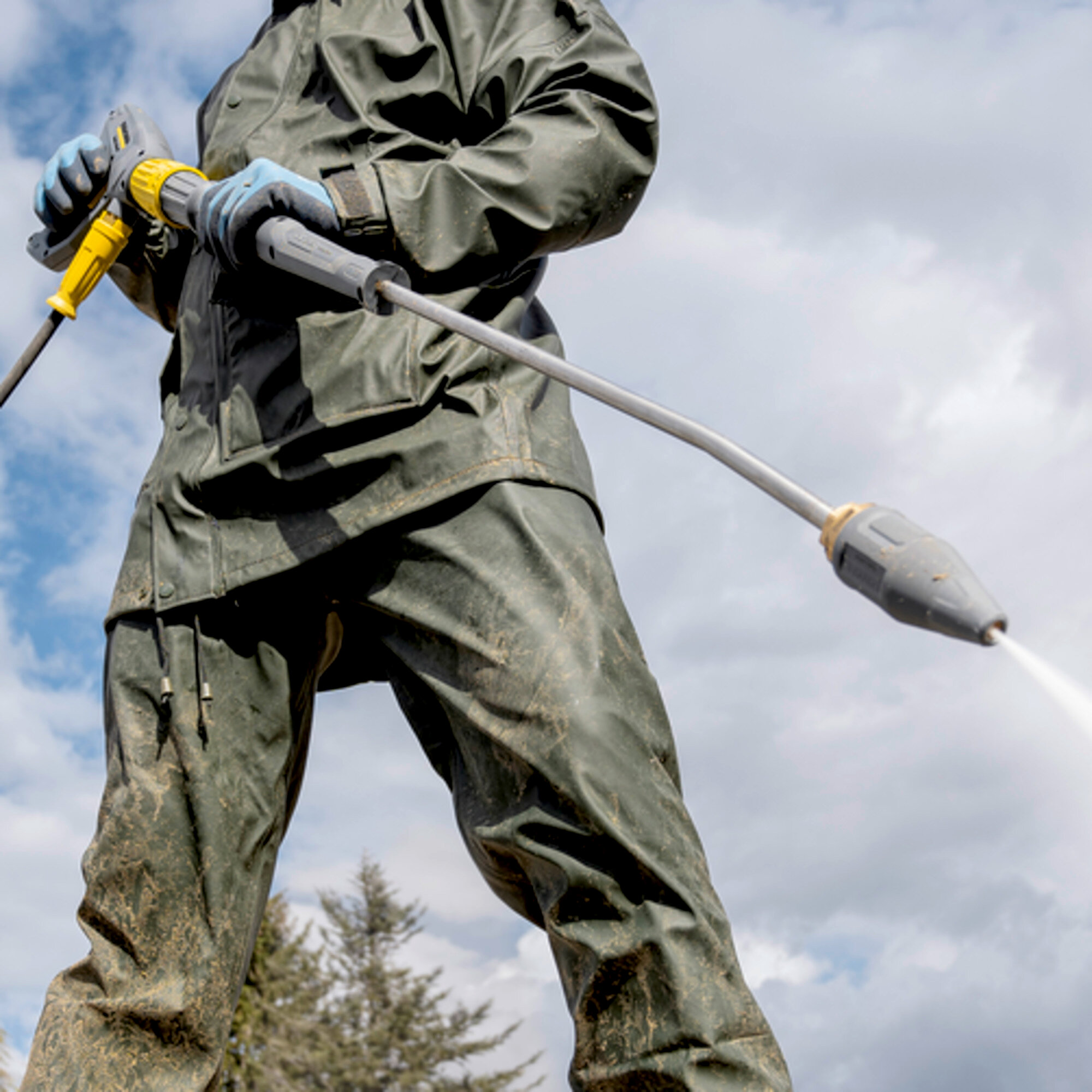

• Ergonomic Vibrasoft Dirt Blaster - Reduces vibrations by up to 30%. Reduces volume and noise level. Rotary nozzle takes the hard work out of extensive cleaning tasks.

Application Areas

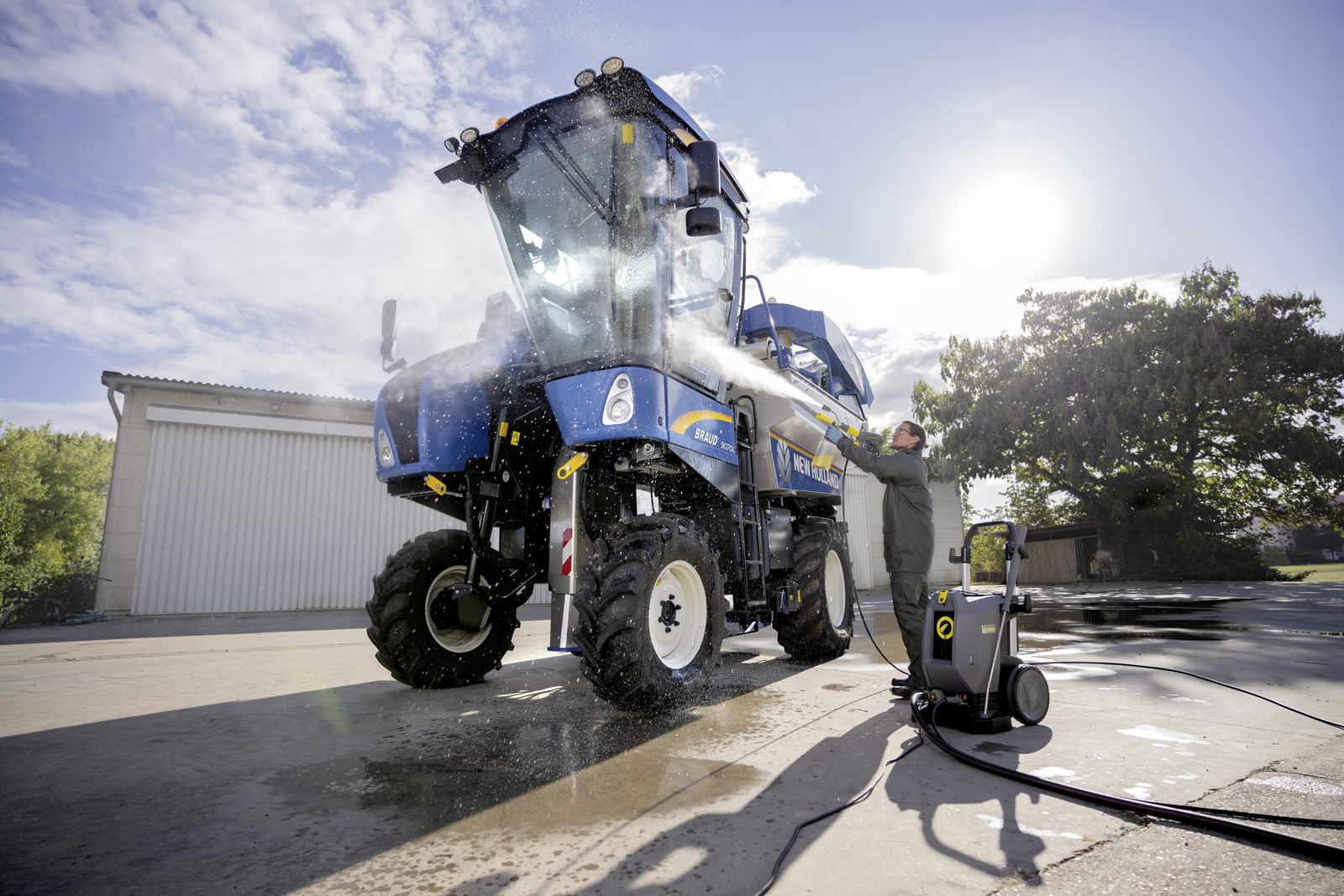

• Cleaning tractors, machines and implements in agriculture

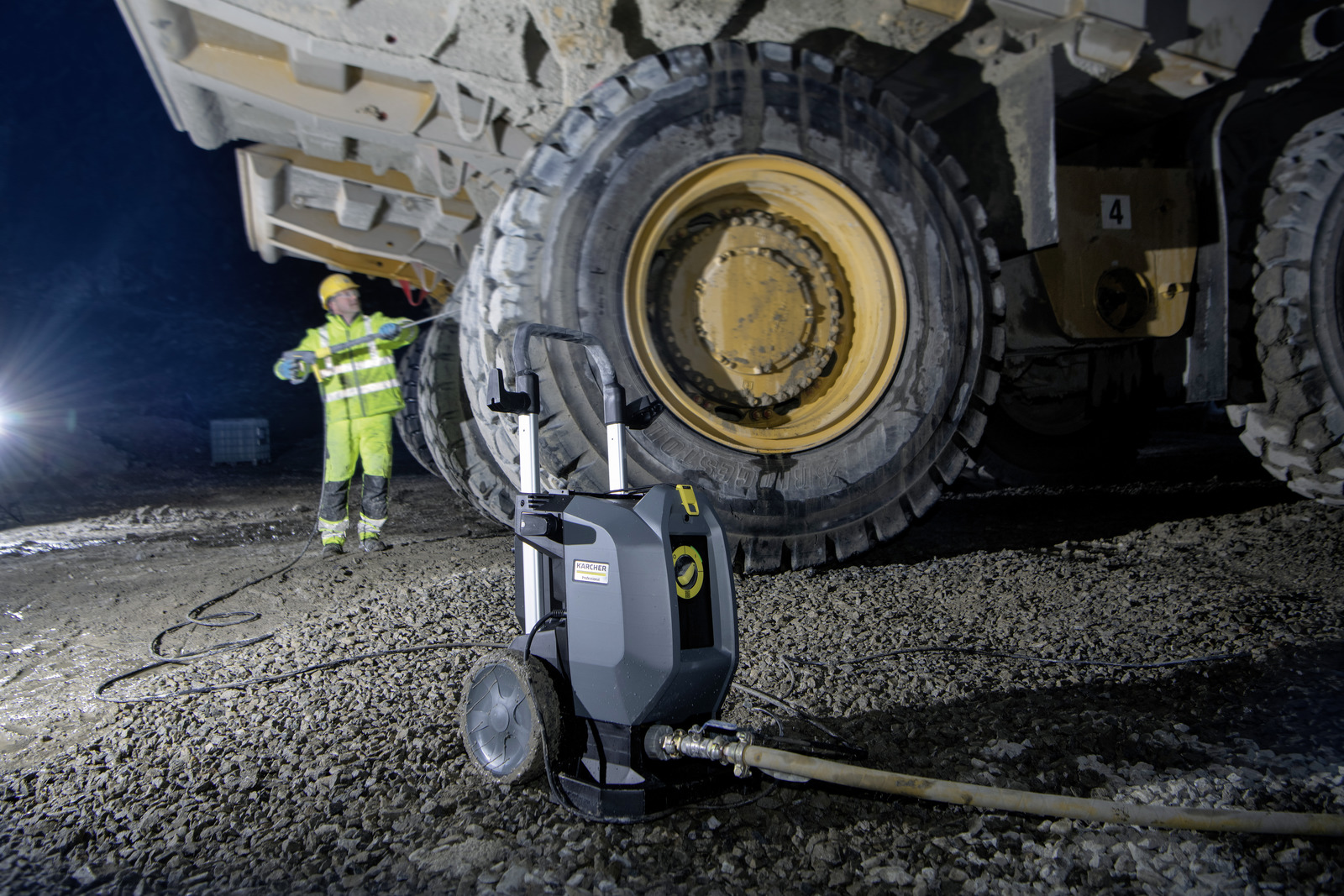

• Cleaning machines and equipment on the building site, such as cement mixers, scaffolding, wheel loaders, diggers or concrete pumps
• Cleaning production machinery in industry, such as in paint shops, in food production or in the manufacturing sector
• Cleaning vehicles in transport sector, such as trucks, ships, aeroplanes or buses
• Cleaning communal spaces such as public squares, driveways, fountains or car parks

Equipment

• Trigger gun: EASY!Force Advanced
• Trigger gun with soft grip
• High-pressure hose length: 10 m
• High-pressure hose type: Premium quality
• High-pressure hose specification: ID 8, 315 bar
• Spray lance: 1050 mm
• Power nozzle
• Dirt Blaster spray lance
• High pressure lance
• Servo Control
• 4-pole three-phase motor with air and water cooling
• Three piston axial pump: with stainless steel pistons
• Pressure switch control

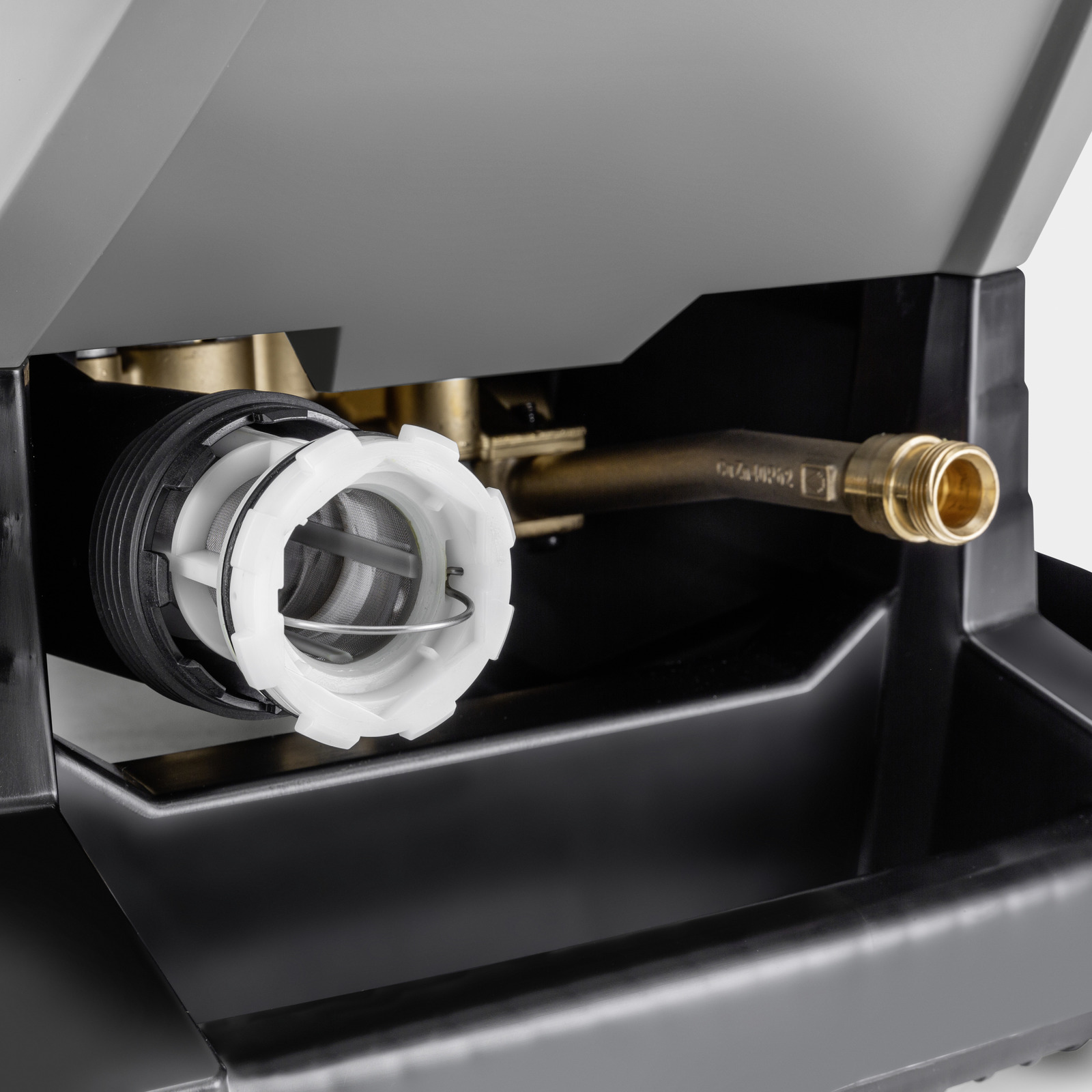

• Integrated fine mesh water filter

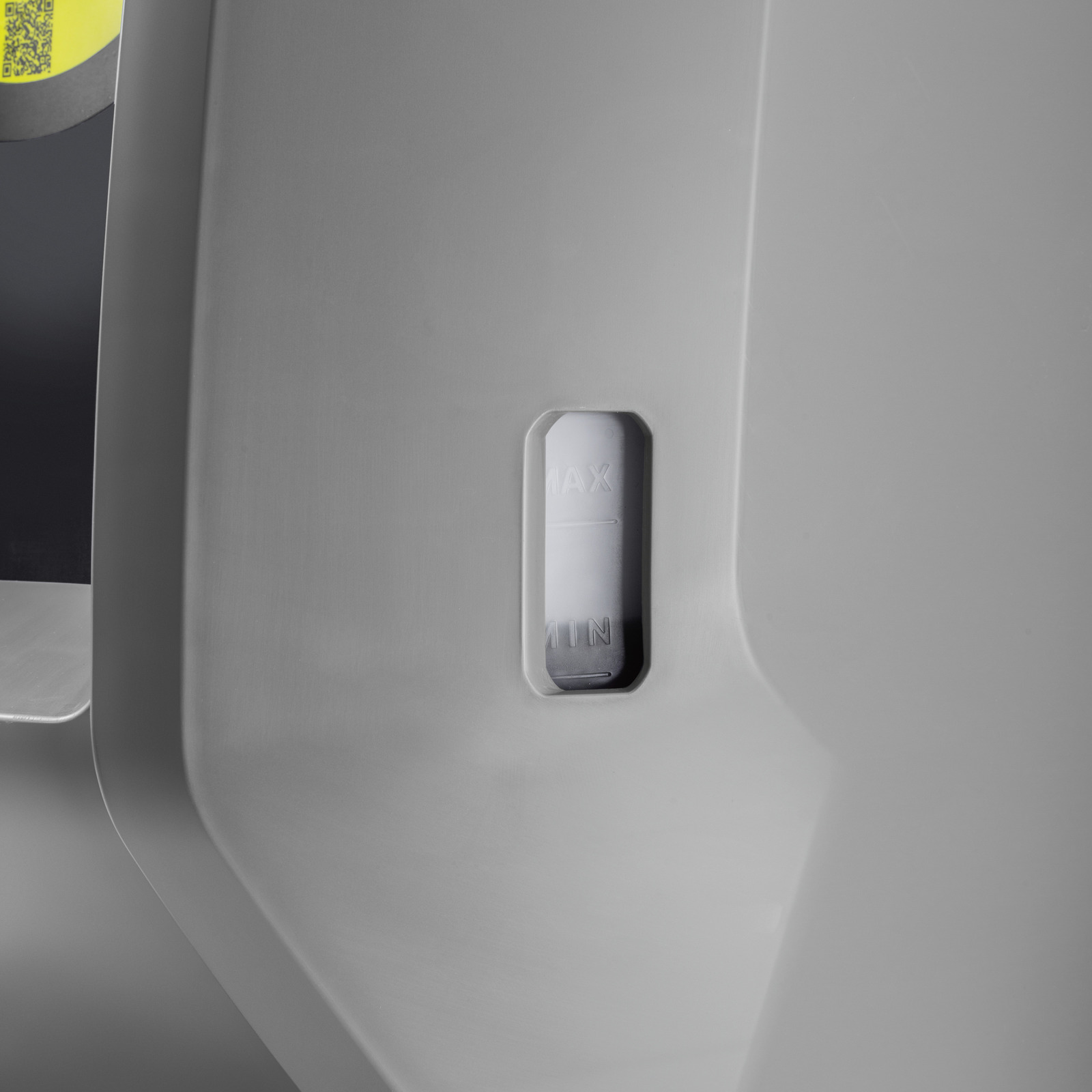

• Oil sight glass
• Brass water inlet fitting

Technical data

• Current type (Ph/V/Hz) - 3 / 376 - 424 / 50
• Flow Rate (l/h) - 500 - 1000
• Water feed temperature (°C) - 60
• Operating pressure (bar) - 50 - 210
• Max. Pressure (bar) - 250
• Power rating (kW) - 8
• Power cable (m) - 5
• Nozzle size - 050
• Water inlet - 1"
• Colour - anthracite
• Weight (with accessories) (kg) - 63.9
• Weight incl. packaging (kg) - 72.2
• Dimensions (L × W × H) (mm) - 607 x 518 x 1063
